Perbadanan Kemajuan
Negeri Selangor
(PKNS Headquarters)

A Green Nexus Set in an Urban Park

CLIENT

PKNS

REGION

Shah Alam,
Selangor

YEAR

Completed in 2016

GFA

25,000 m²

DISCIPLINES

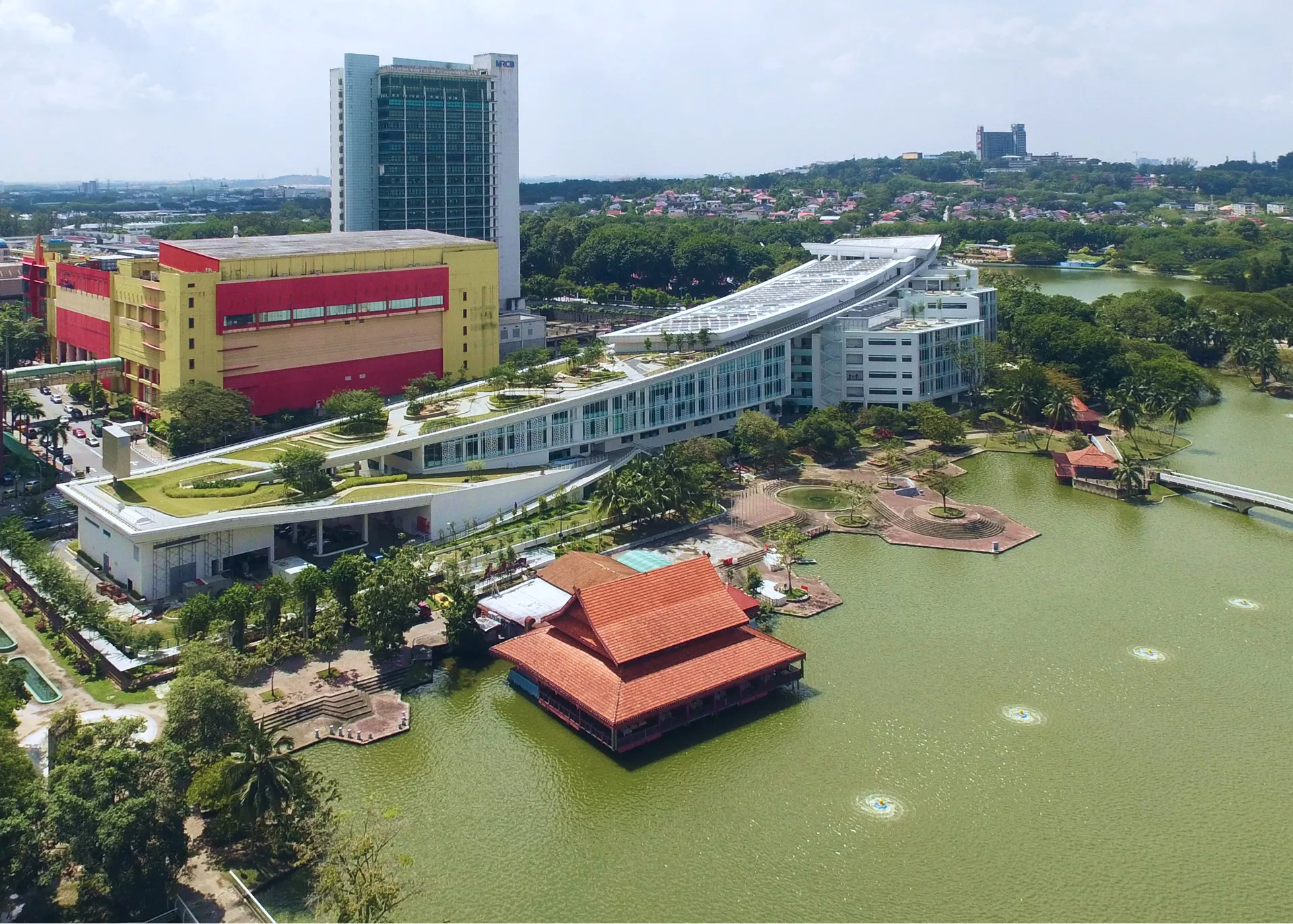

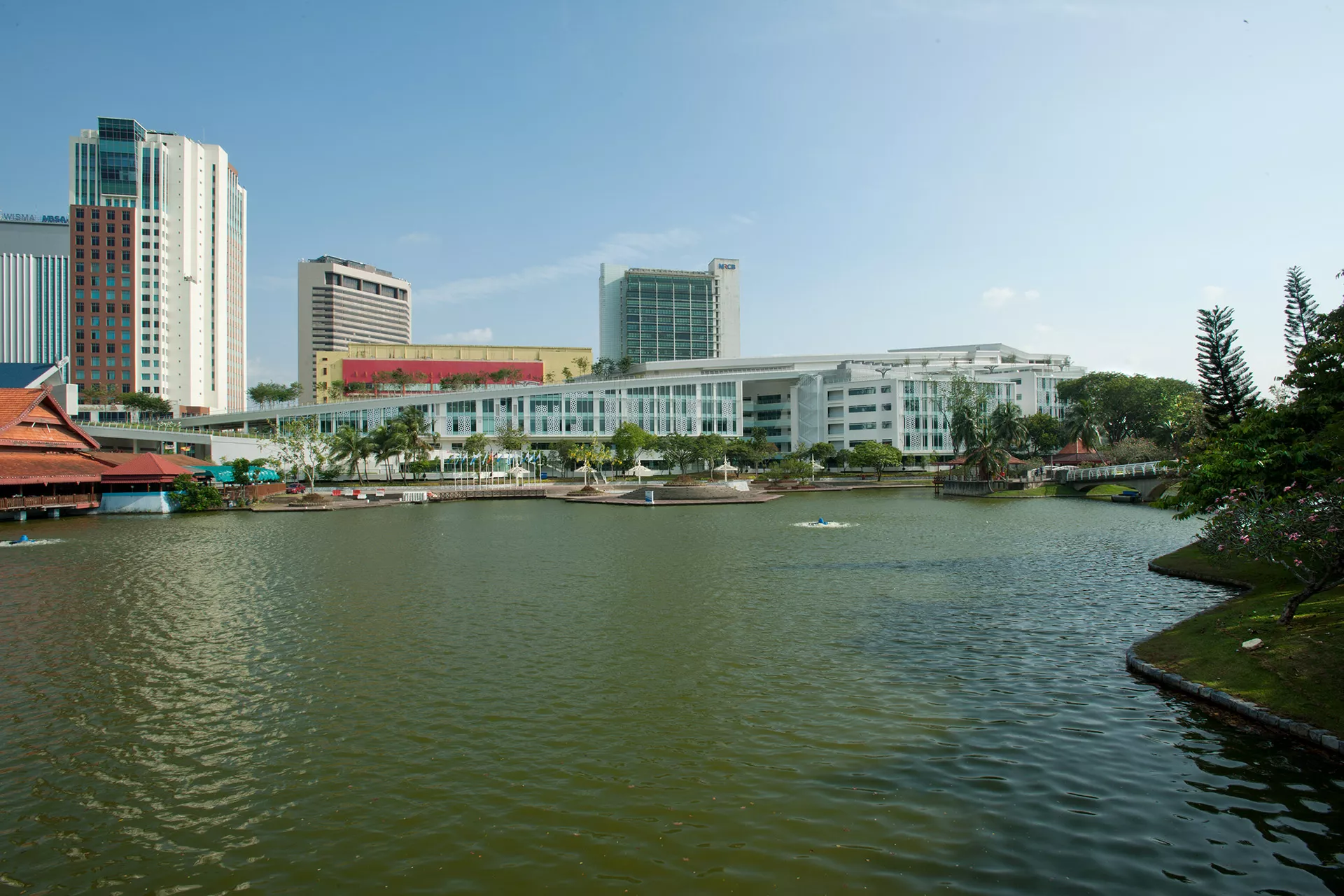

Set along Shah Alam’s central recreational belt, the PKNS Headquarters occupies a 4.6-acre site fronting Tasik Tengah, where urban life meets a lush lakeside landscape. Conceived as both an administrative centre and a civic refuge, the  building positions PKNS as a leader in future-forward, environmentally attuned architecture.

ARCHITECTURE

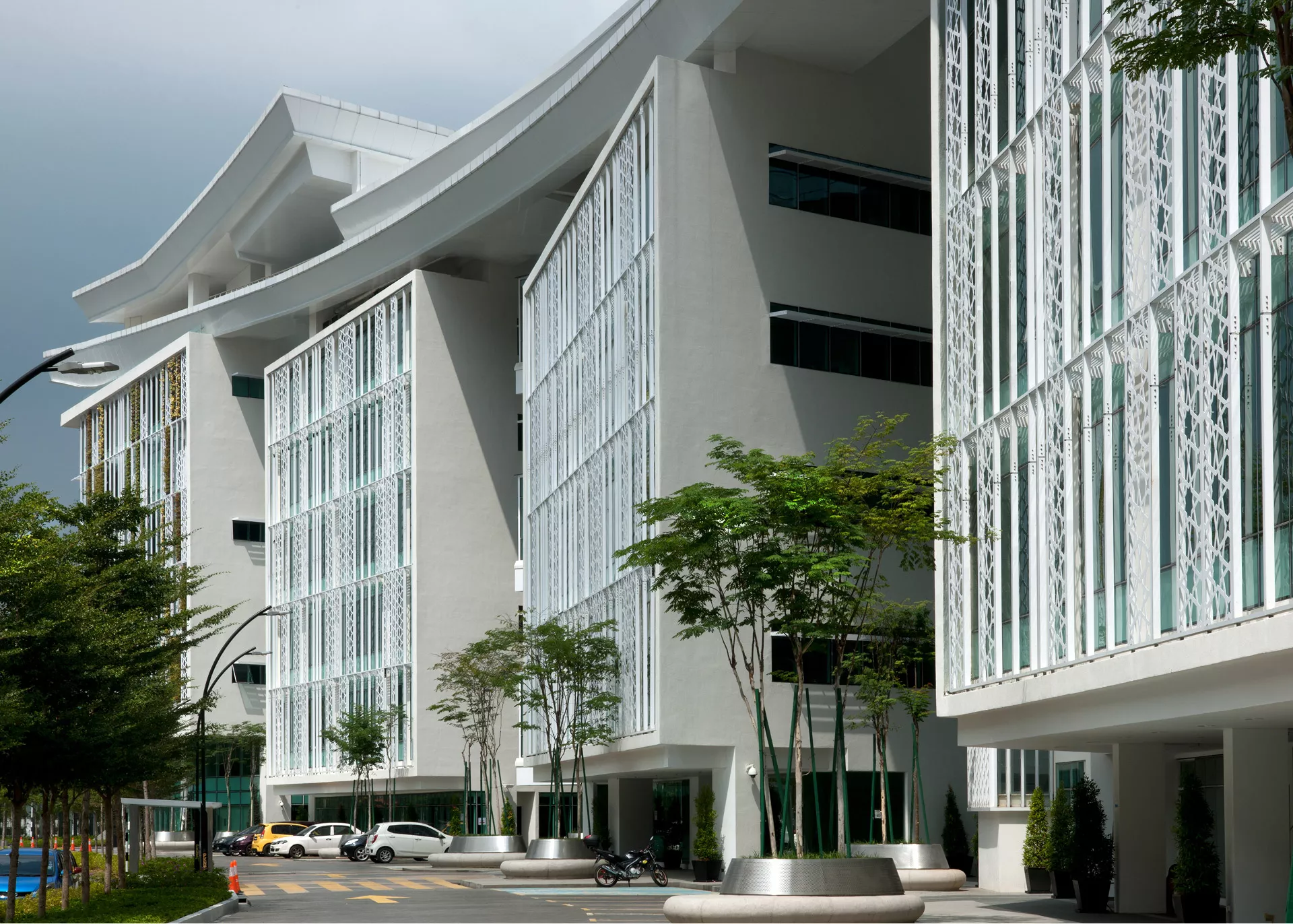

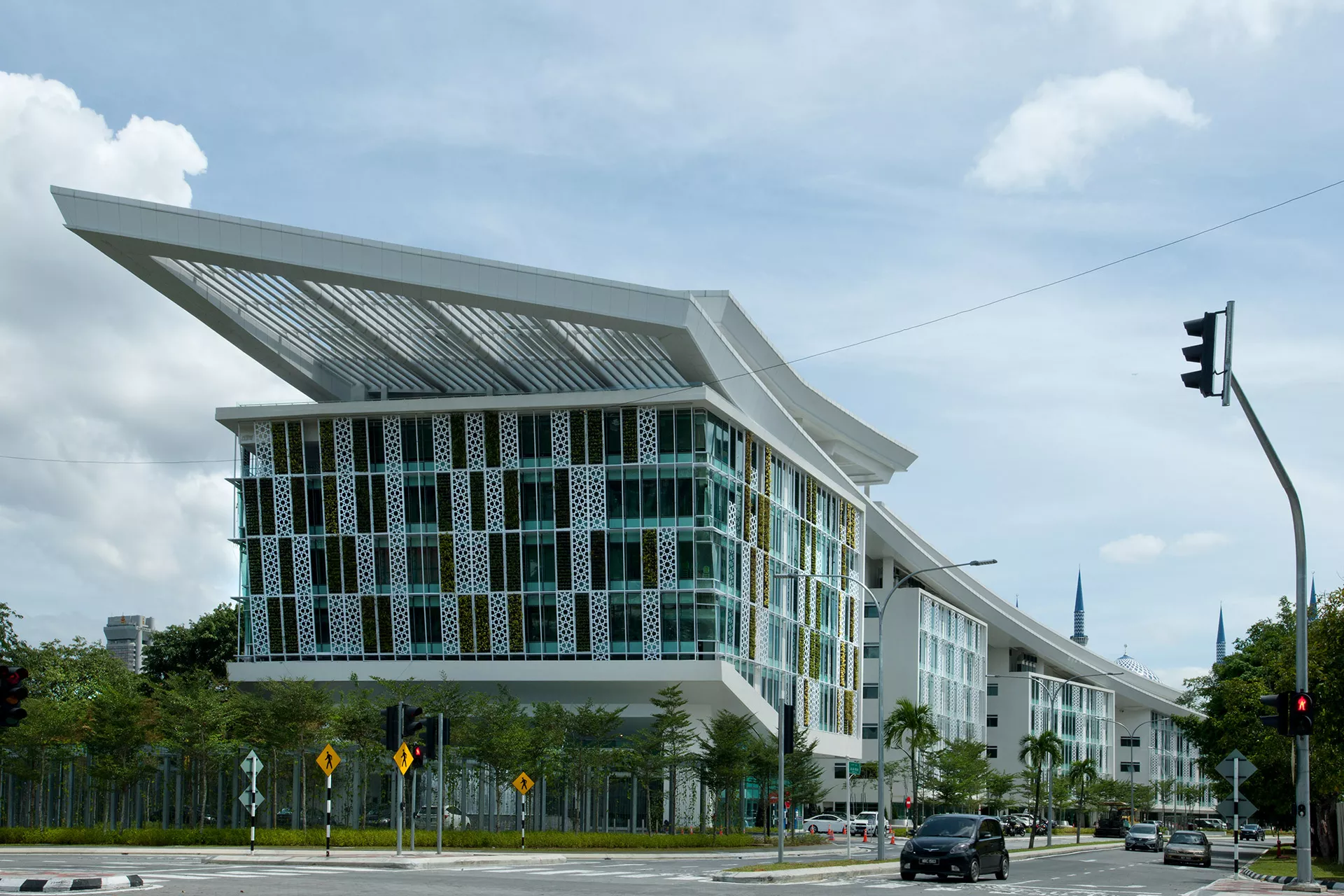

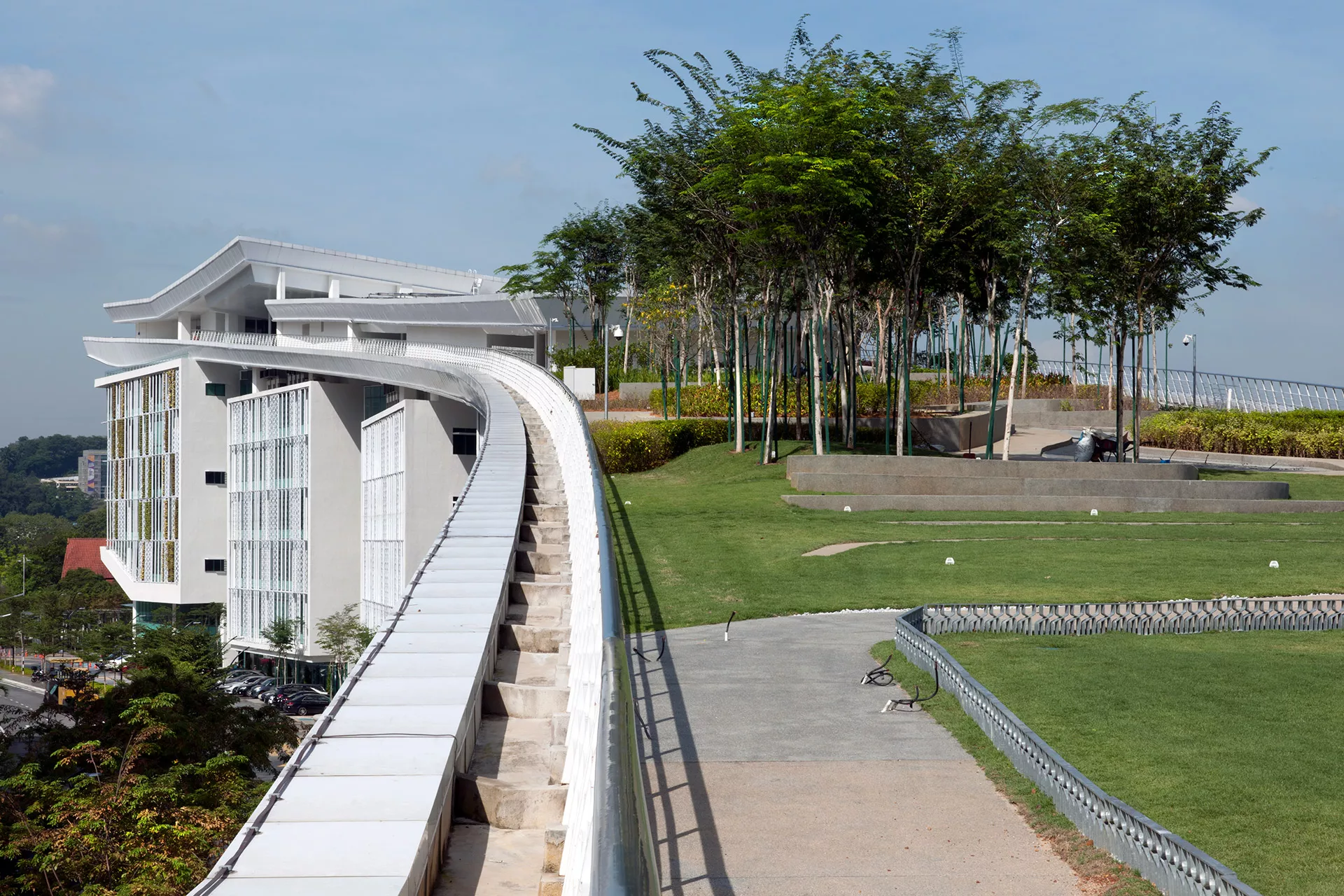

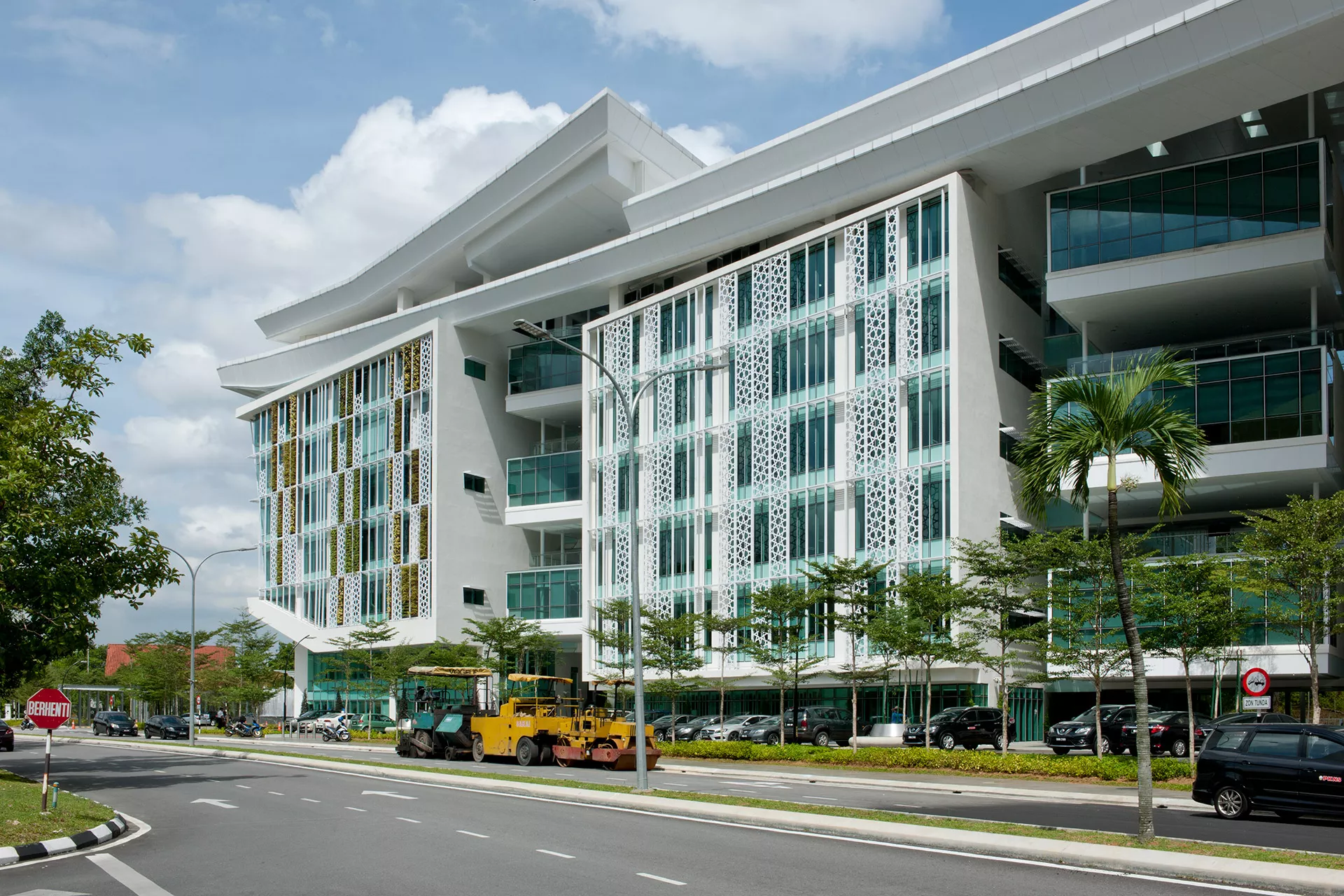

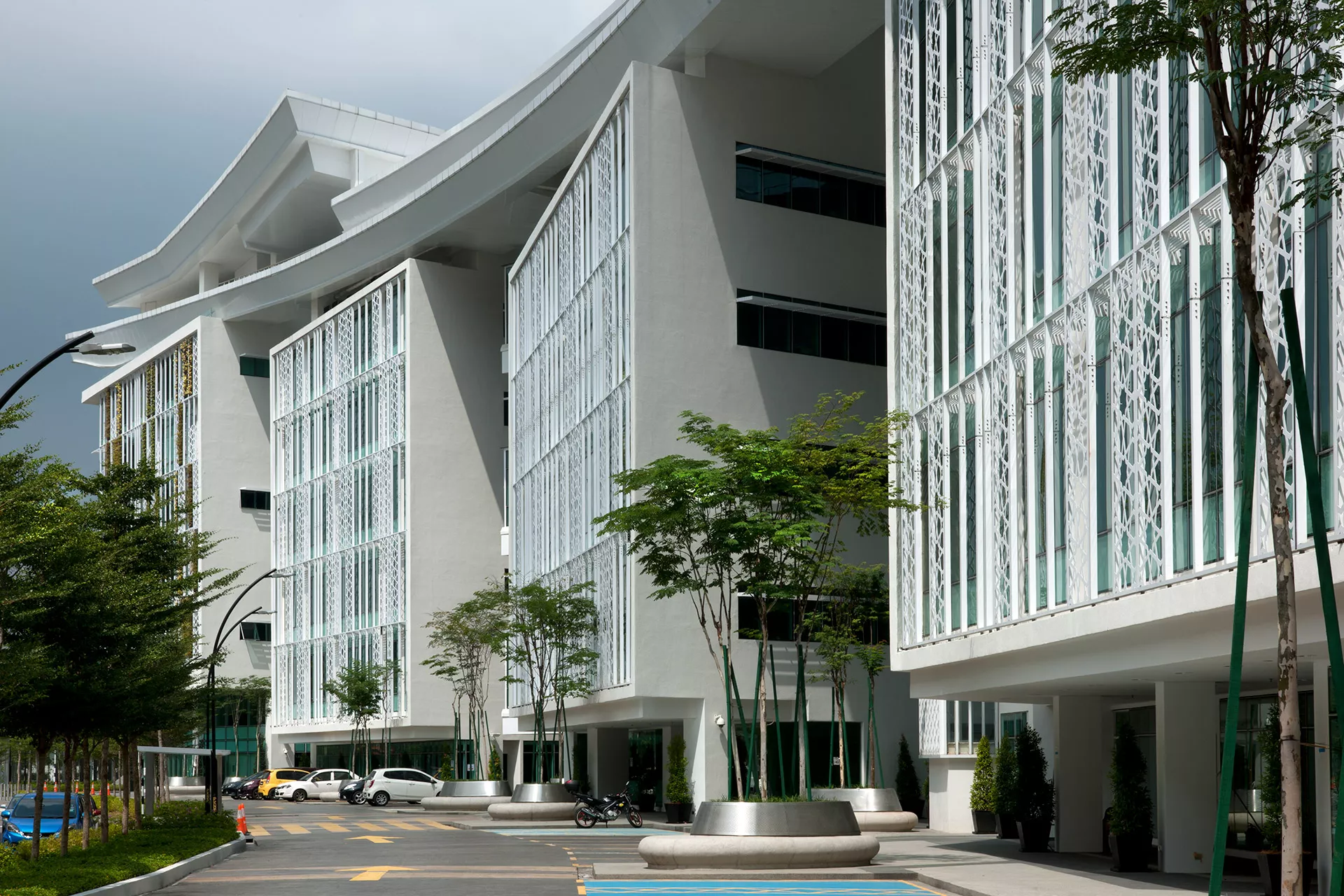

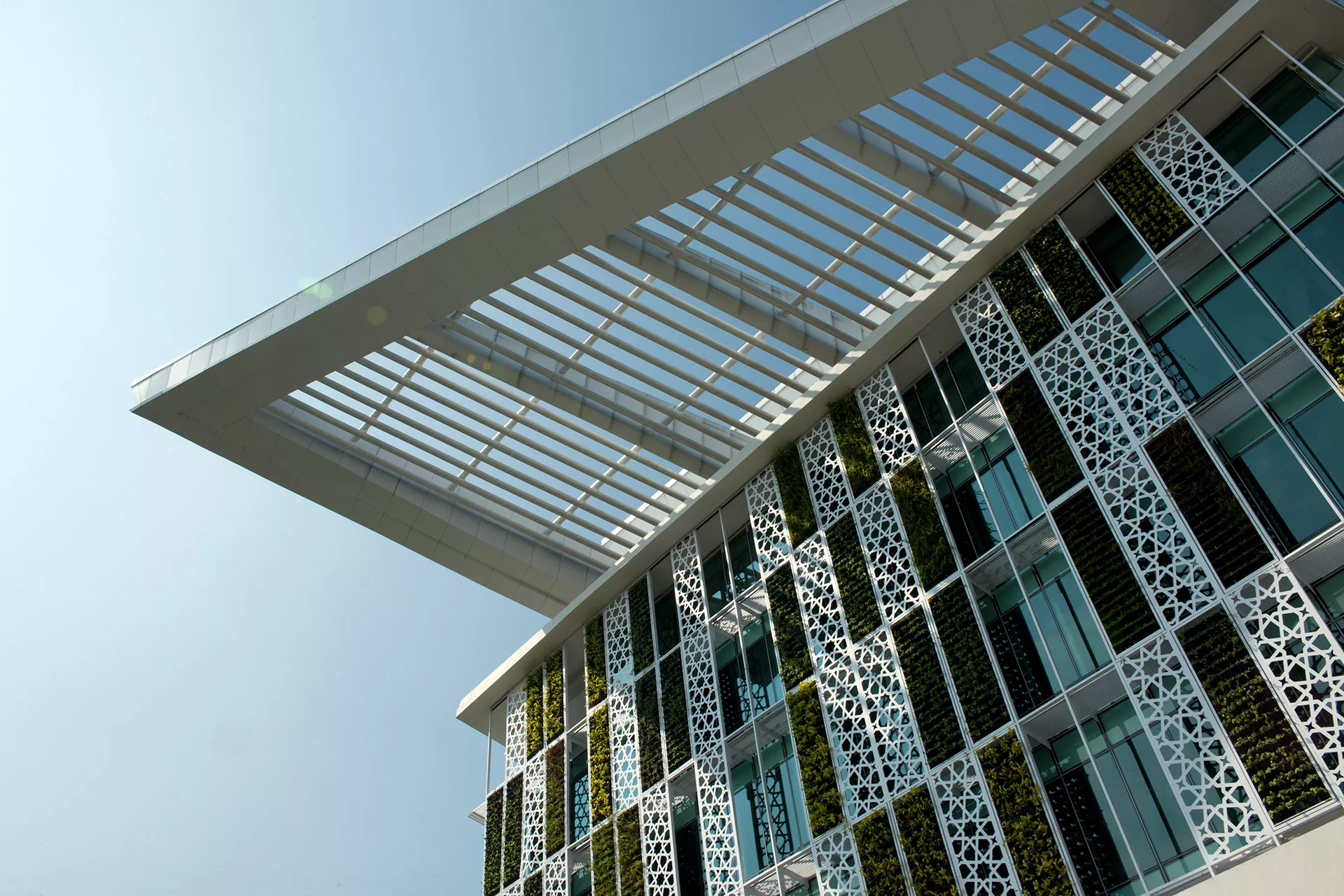

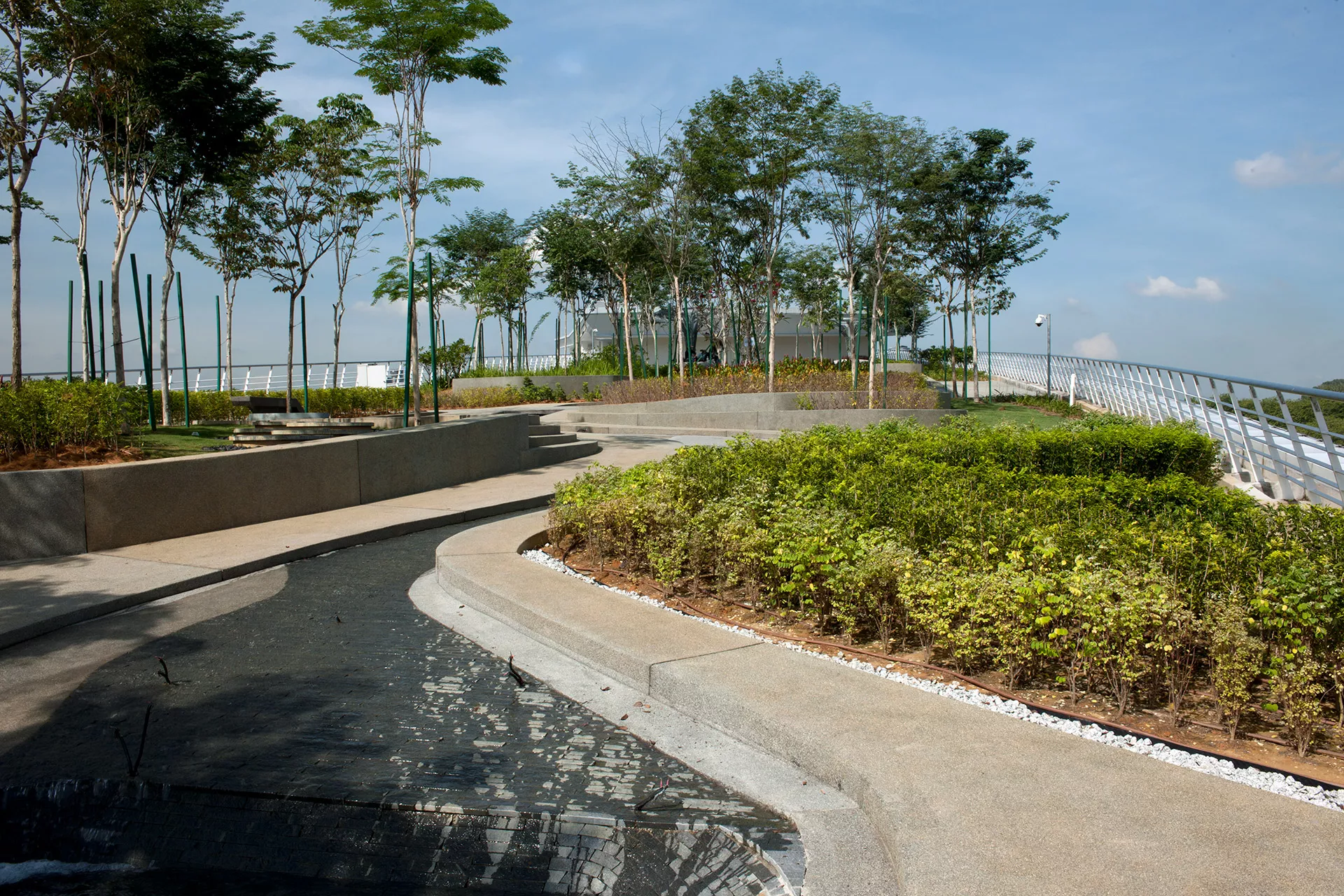

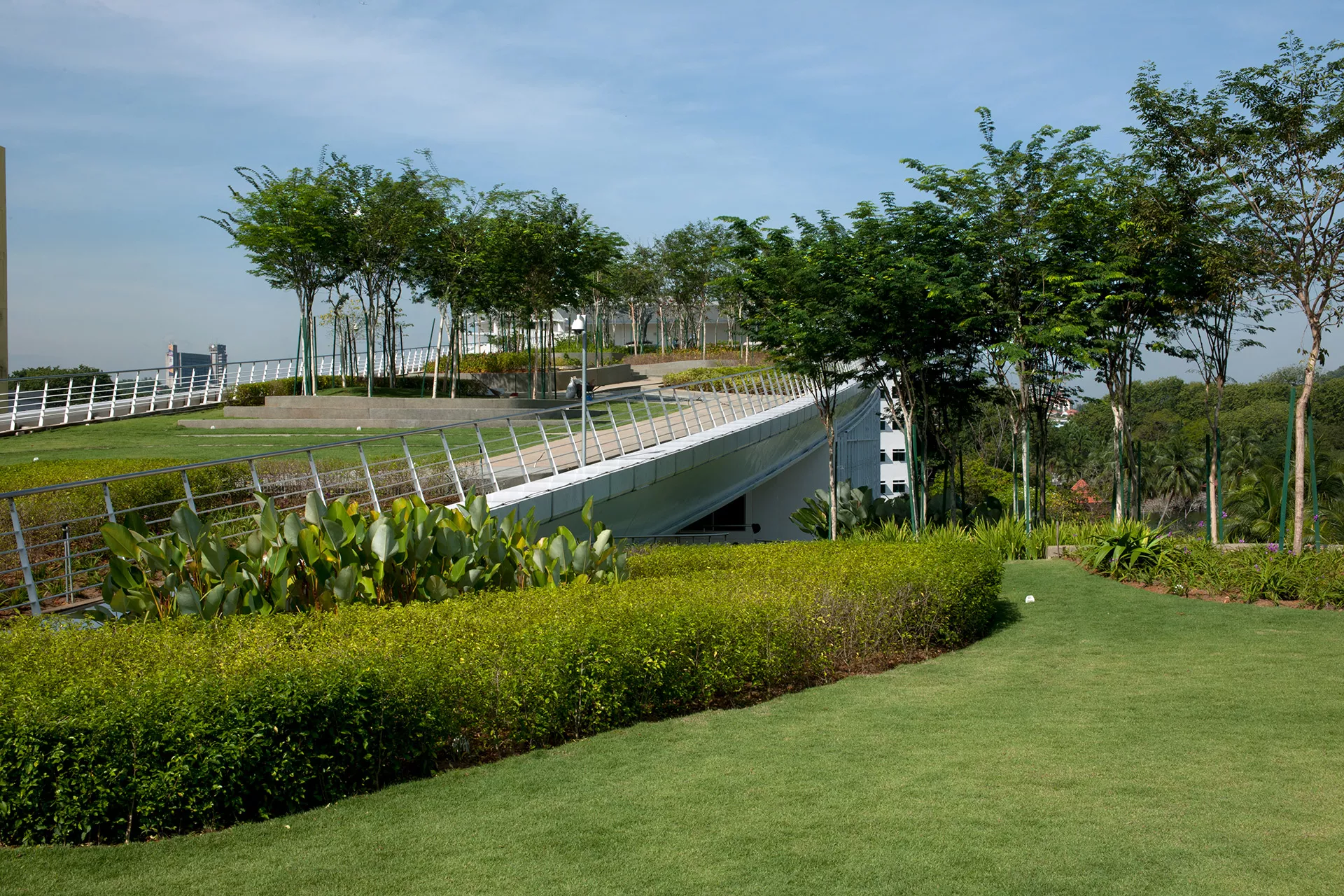

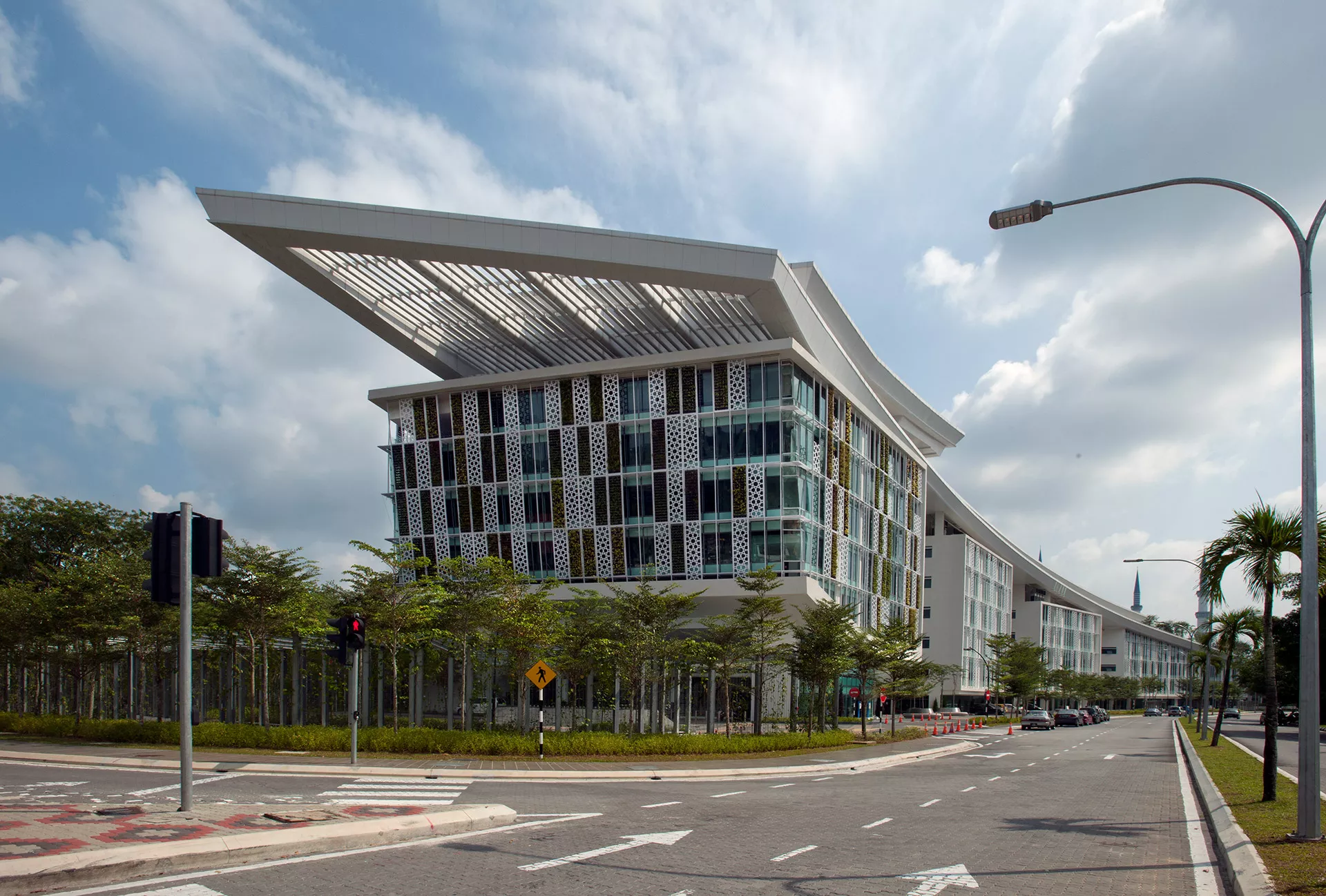

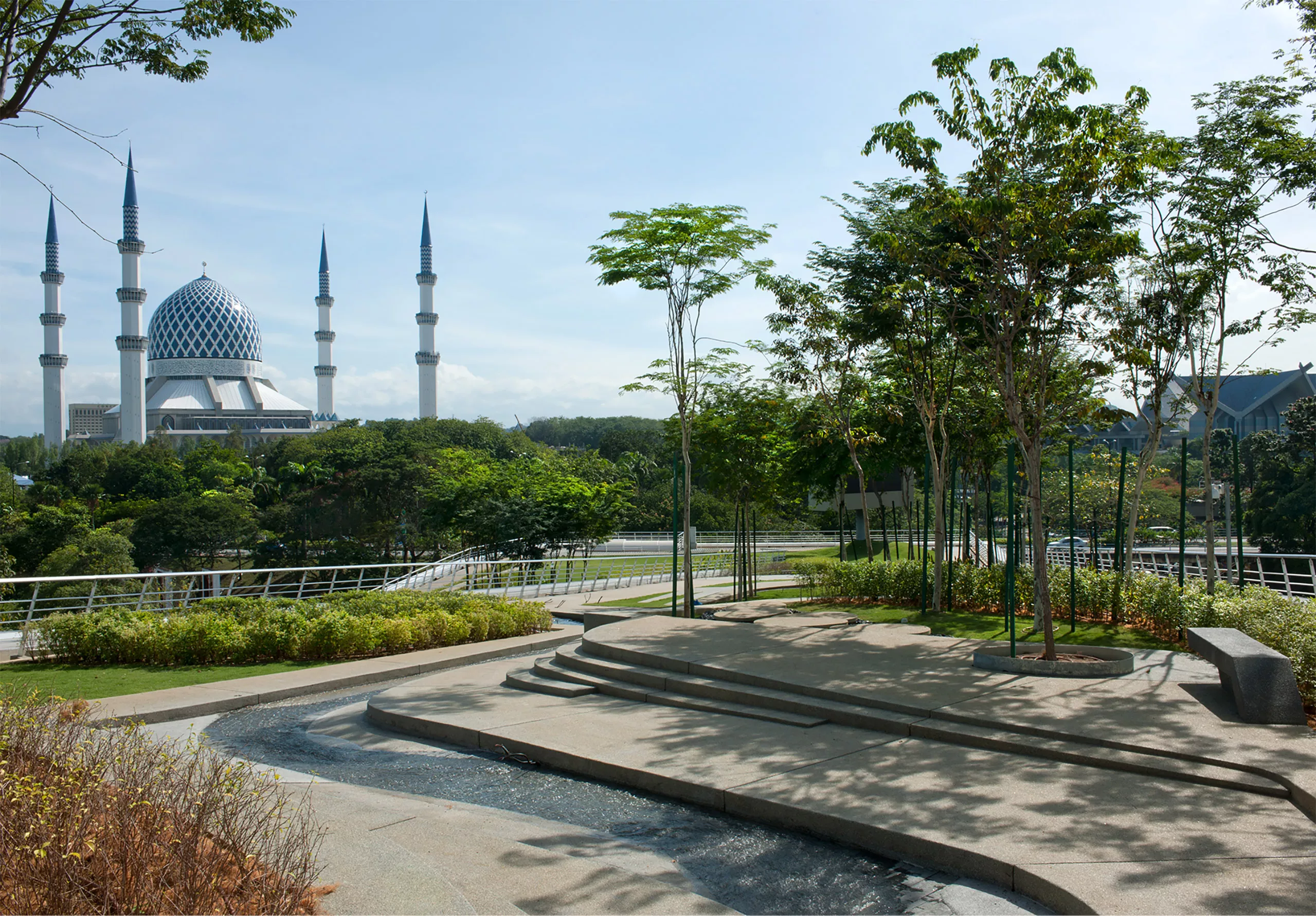

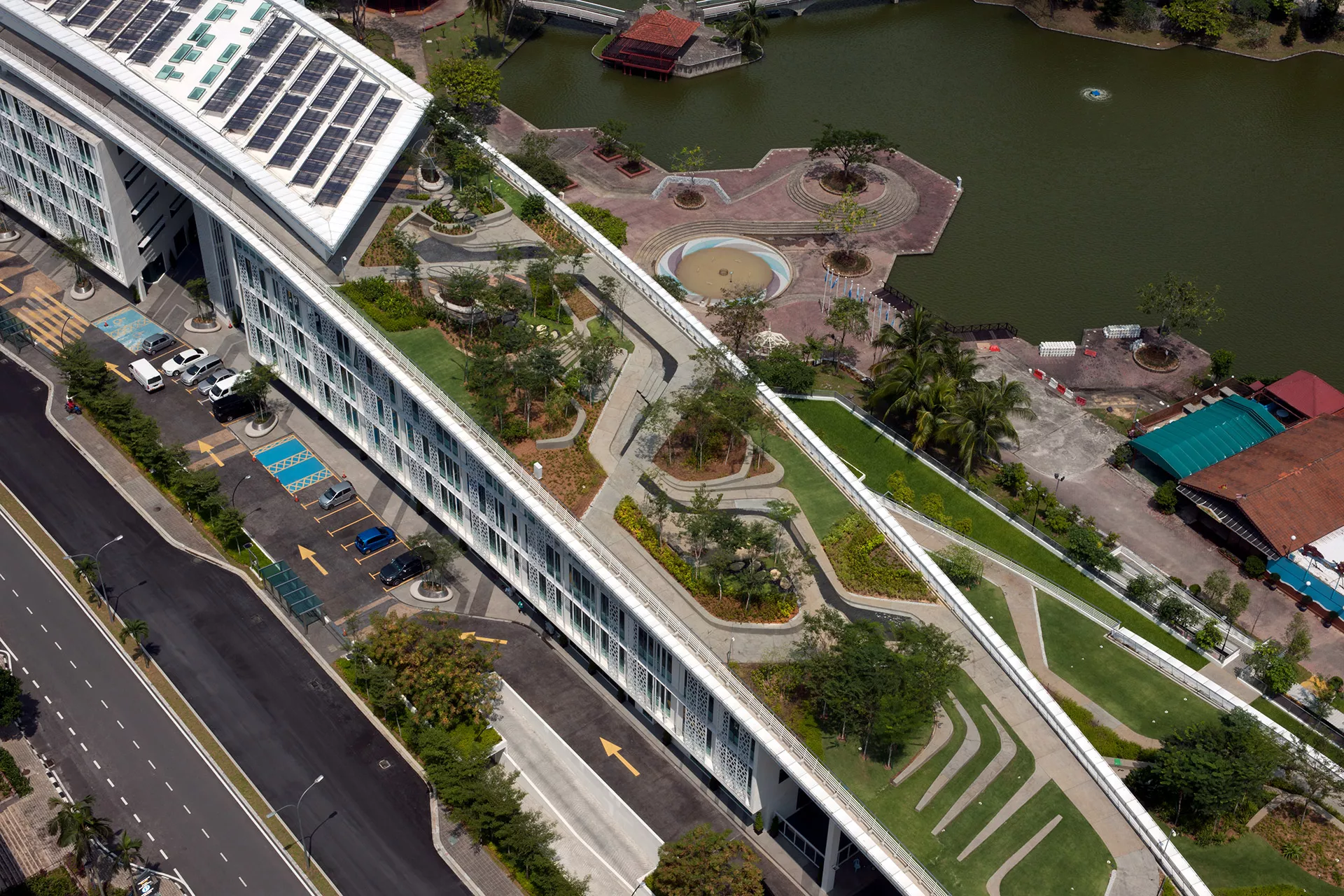

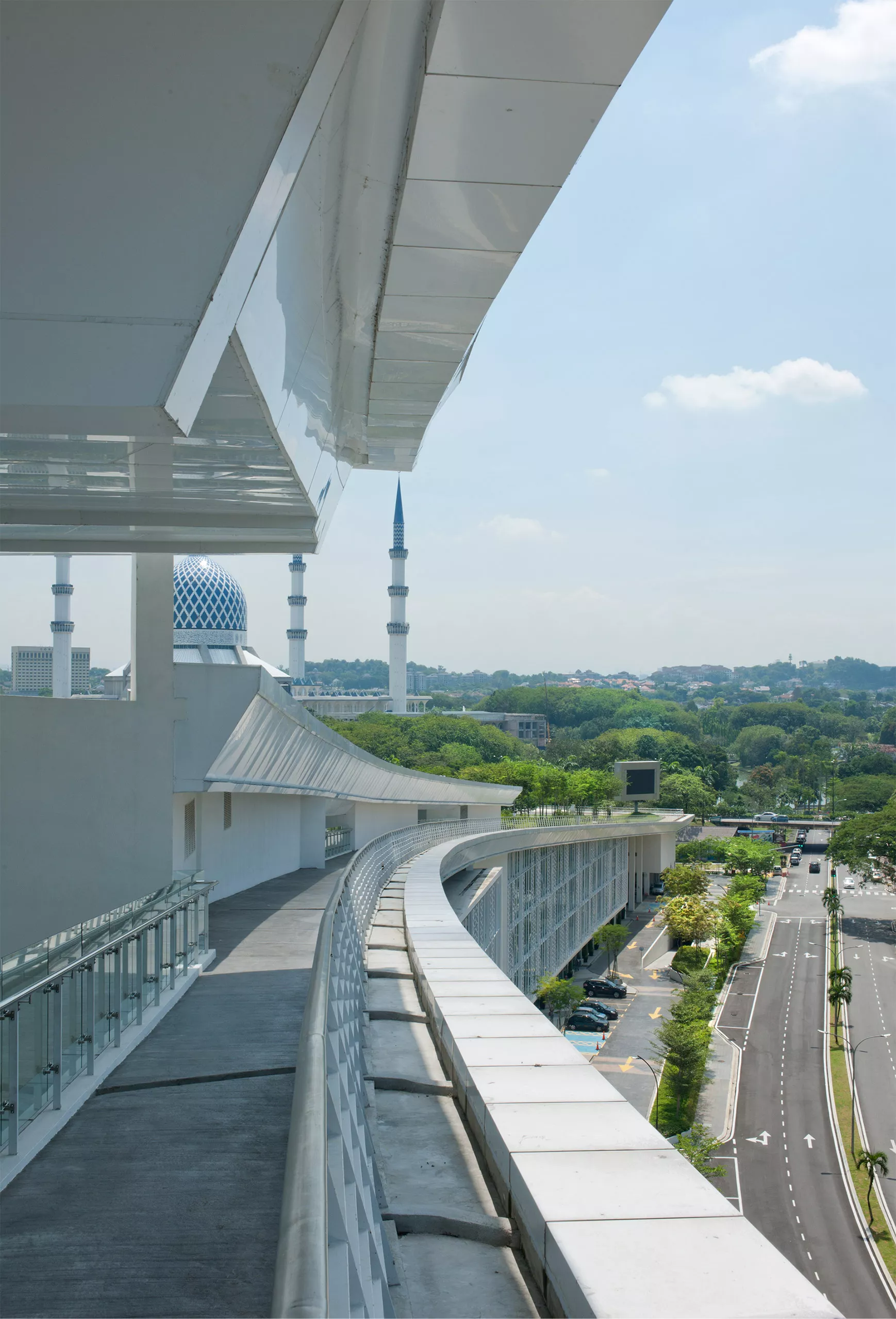

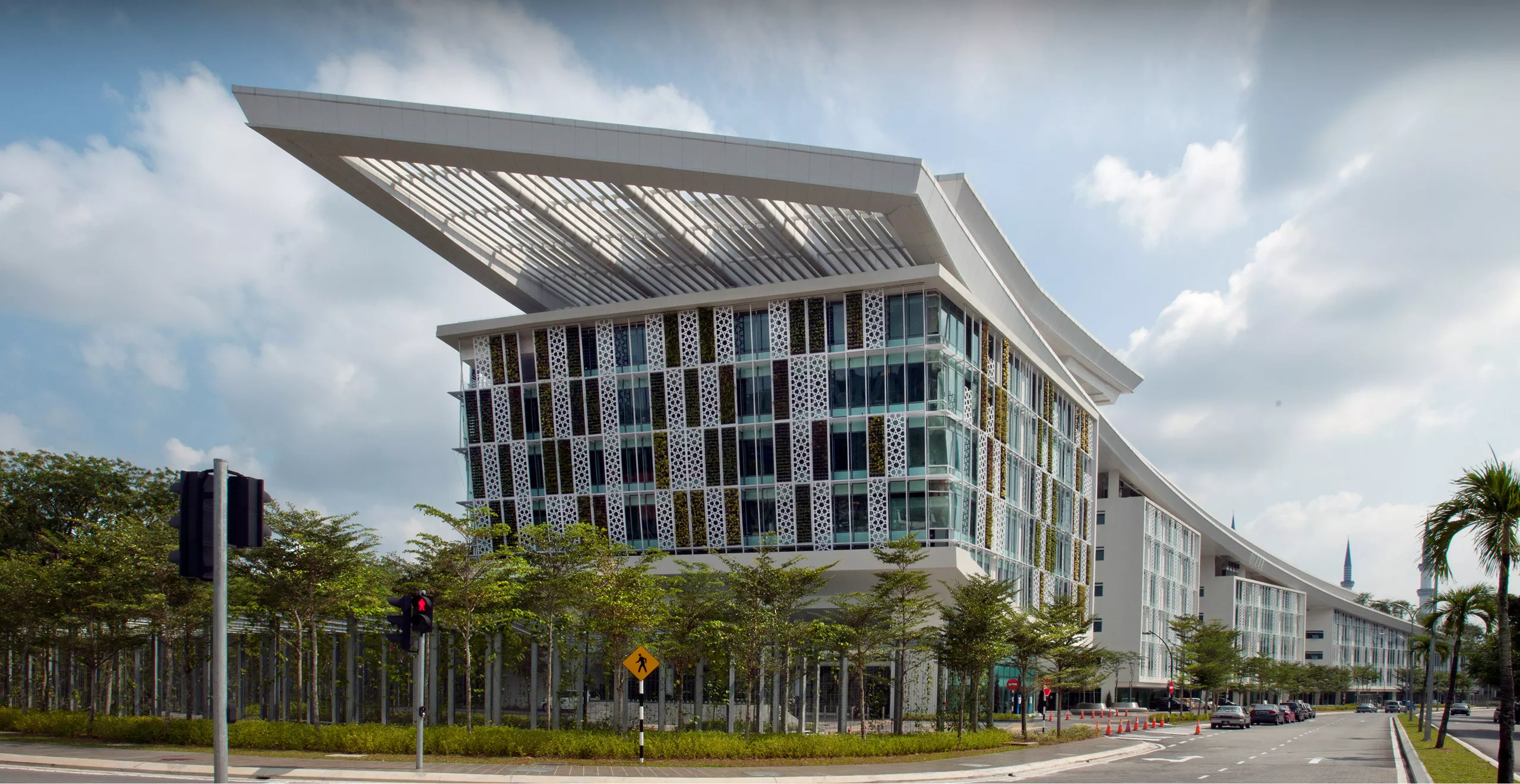

The headquarters is organized as four slender office blocks—ranging from four to eight storeys and between 10 and 15 meters in width—gathered beneath a single, sweeping green roof. This unifying roof form rises organically from the landscape, transforming the building into an extension of its lakeside terrain. From the outside, the structure reads as an inhabited landform: a terraced, planted surface that restores more greenery than what the development displaces. The ascending green roof serves as an accessible public park, drawing visitors upward to panoramic views of the man-made lake.

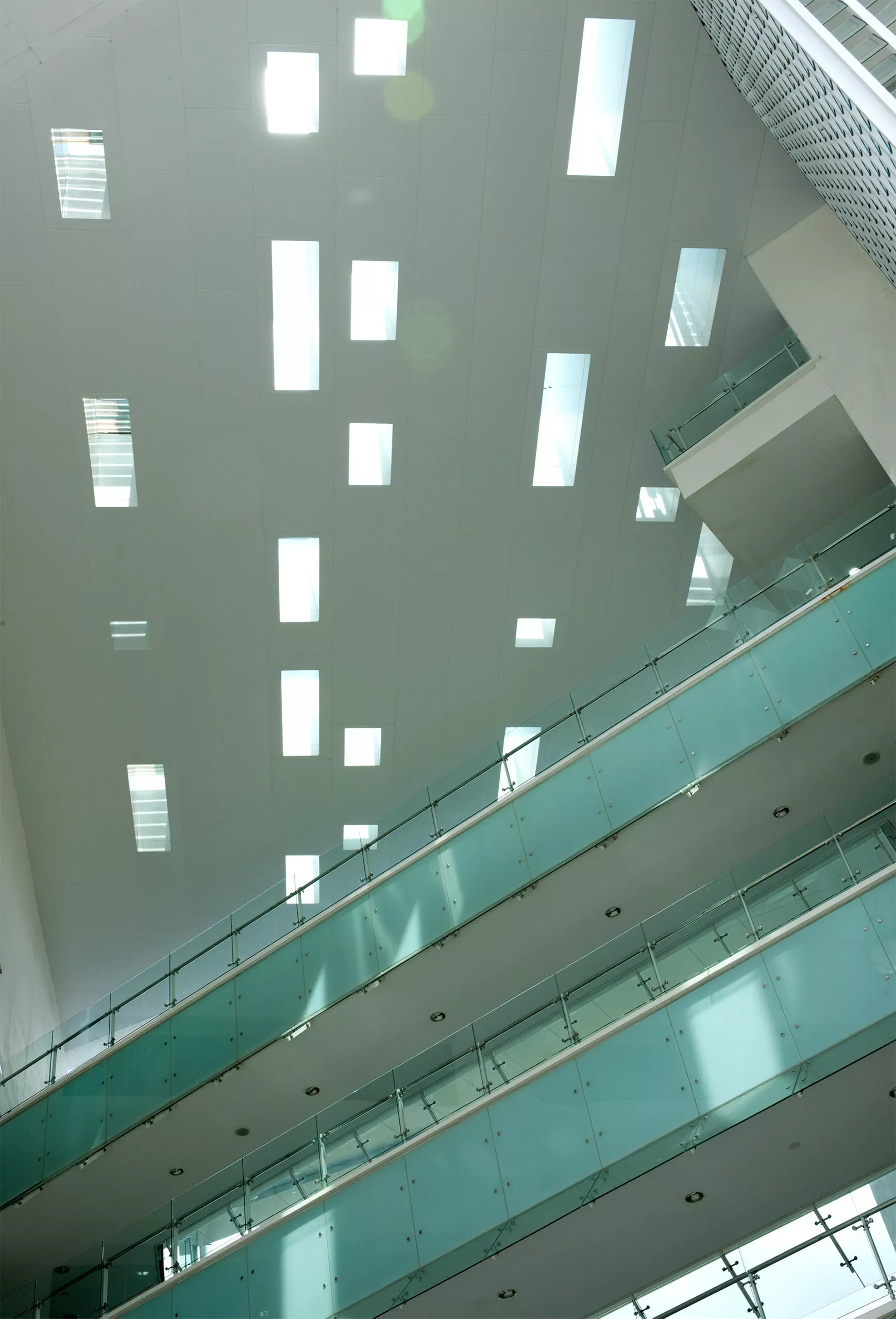

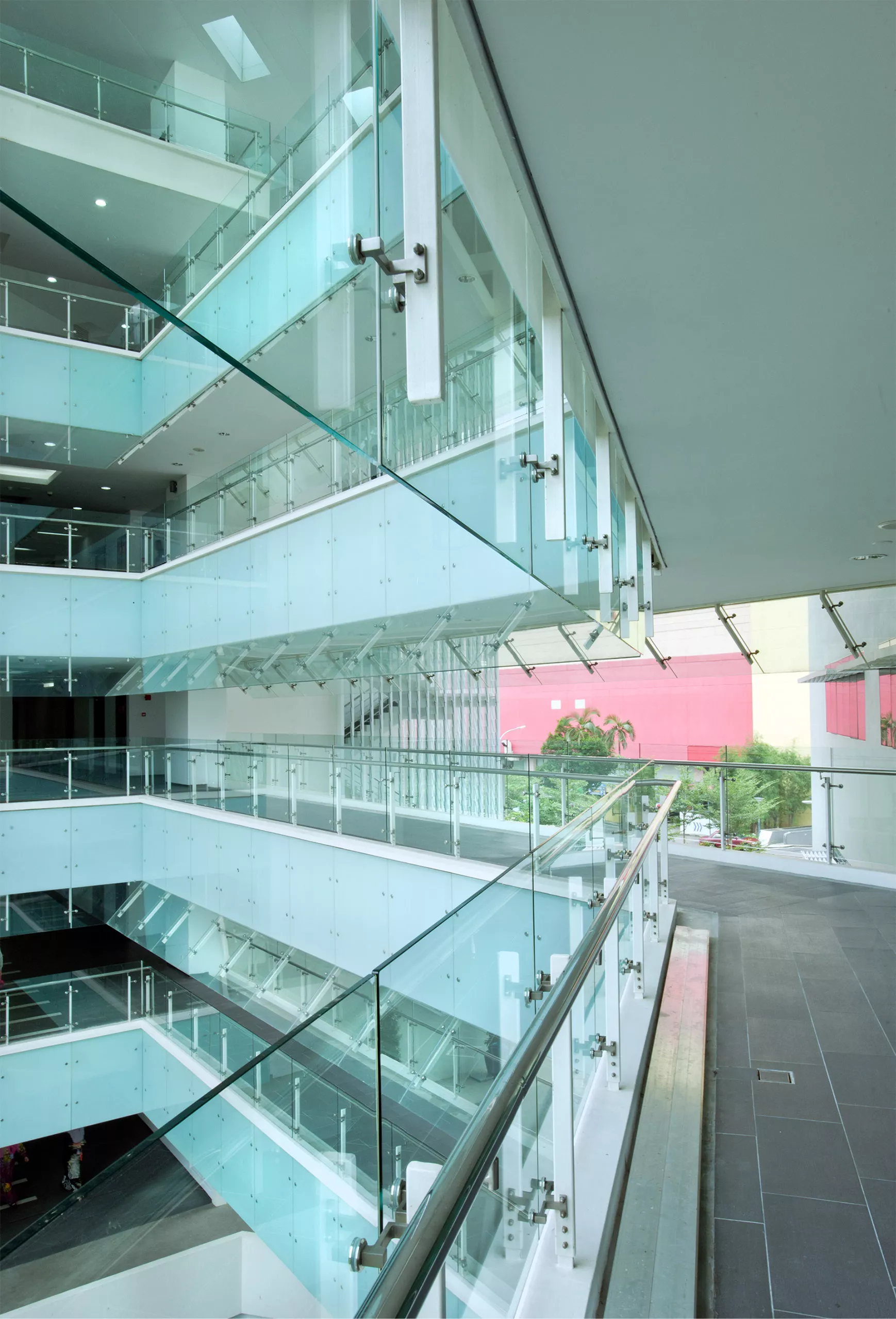

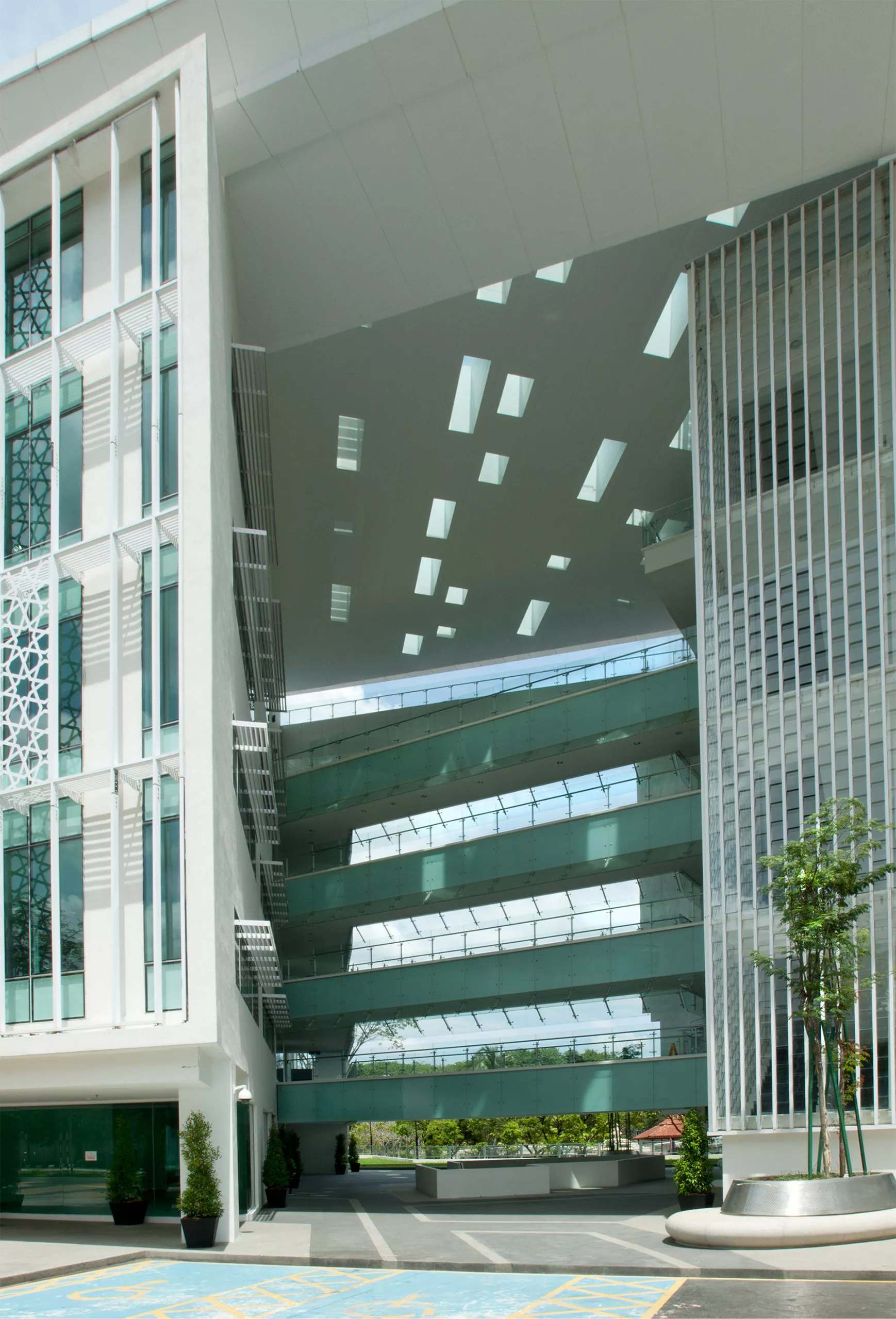

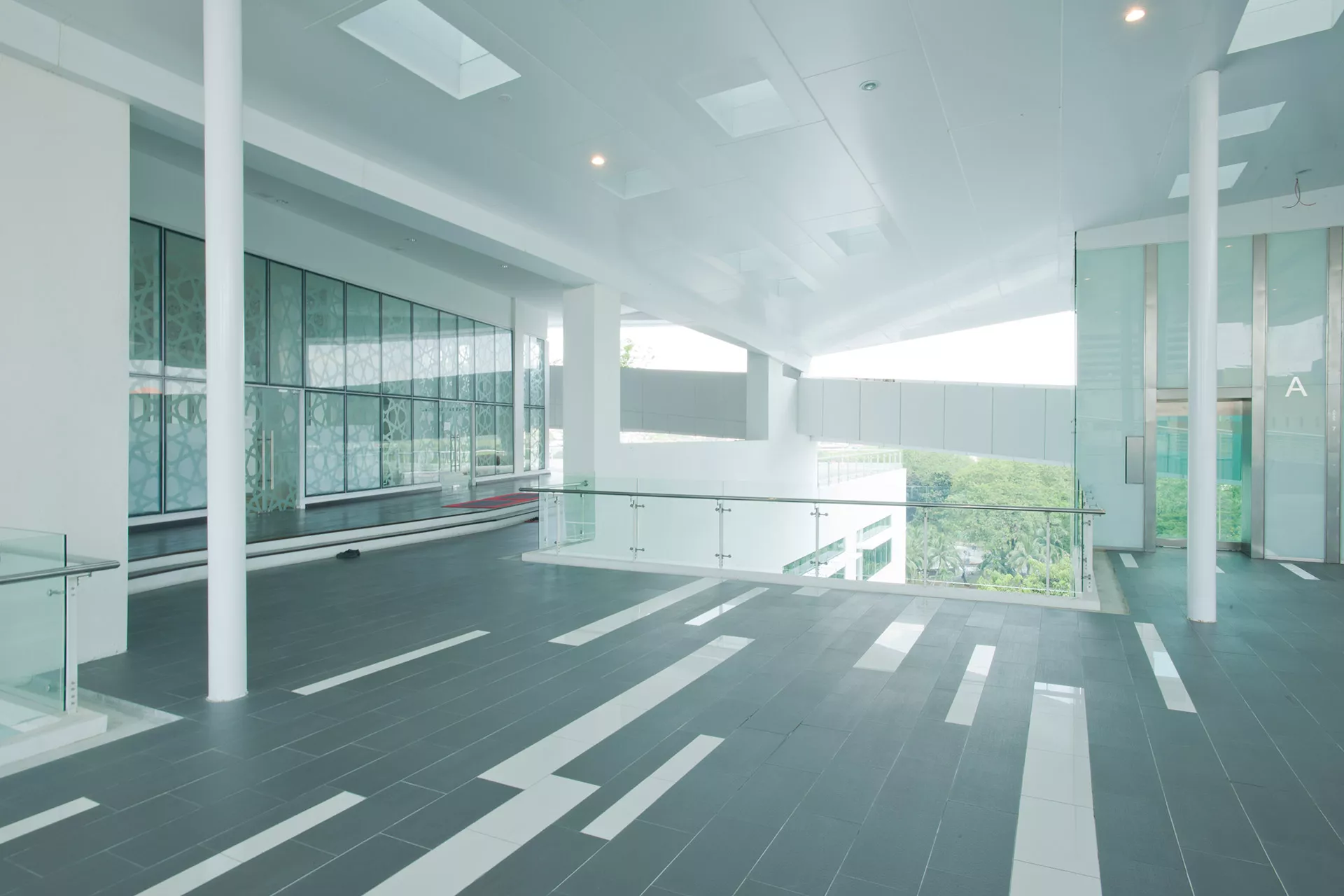

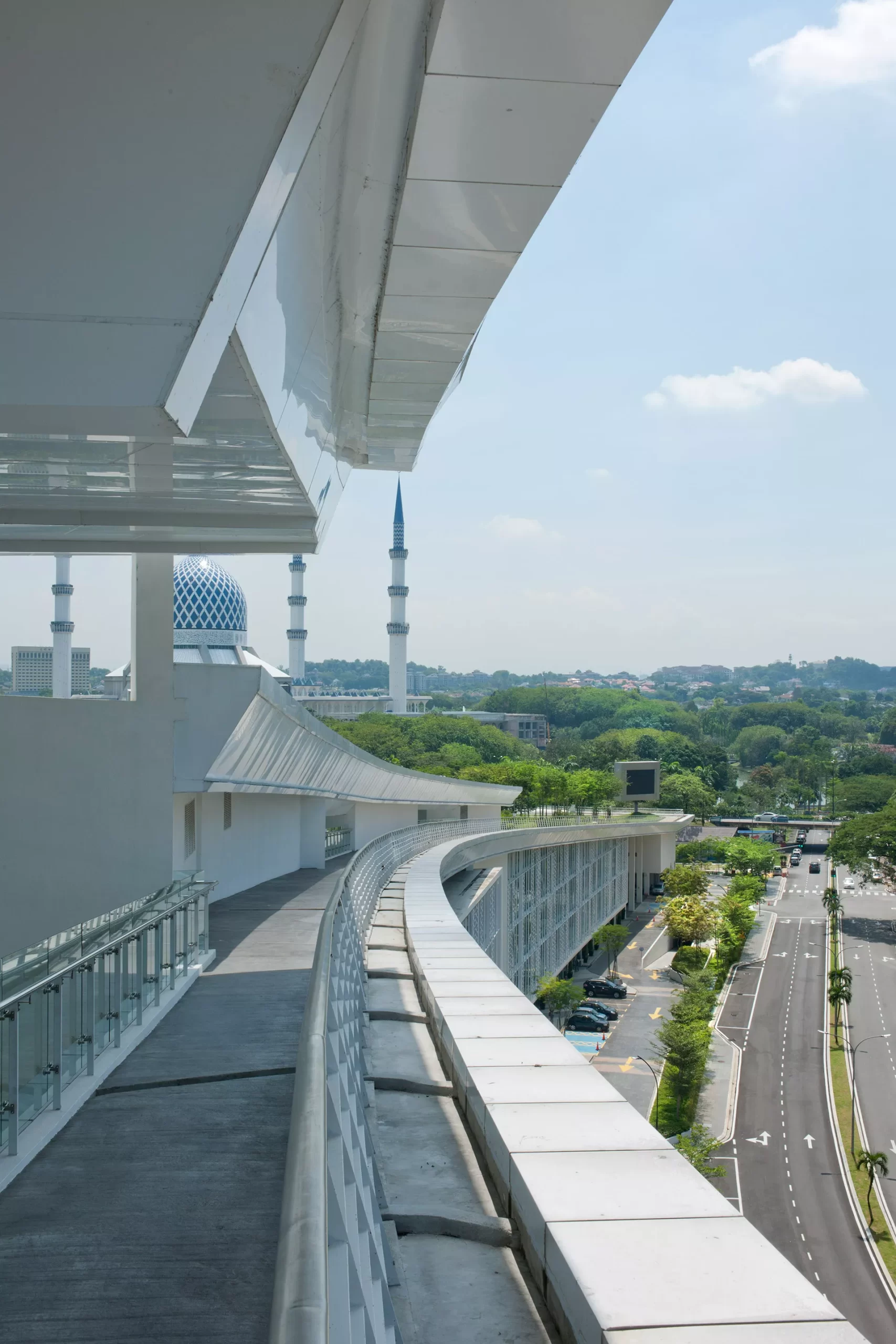

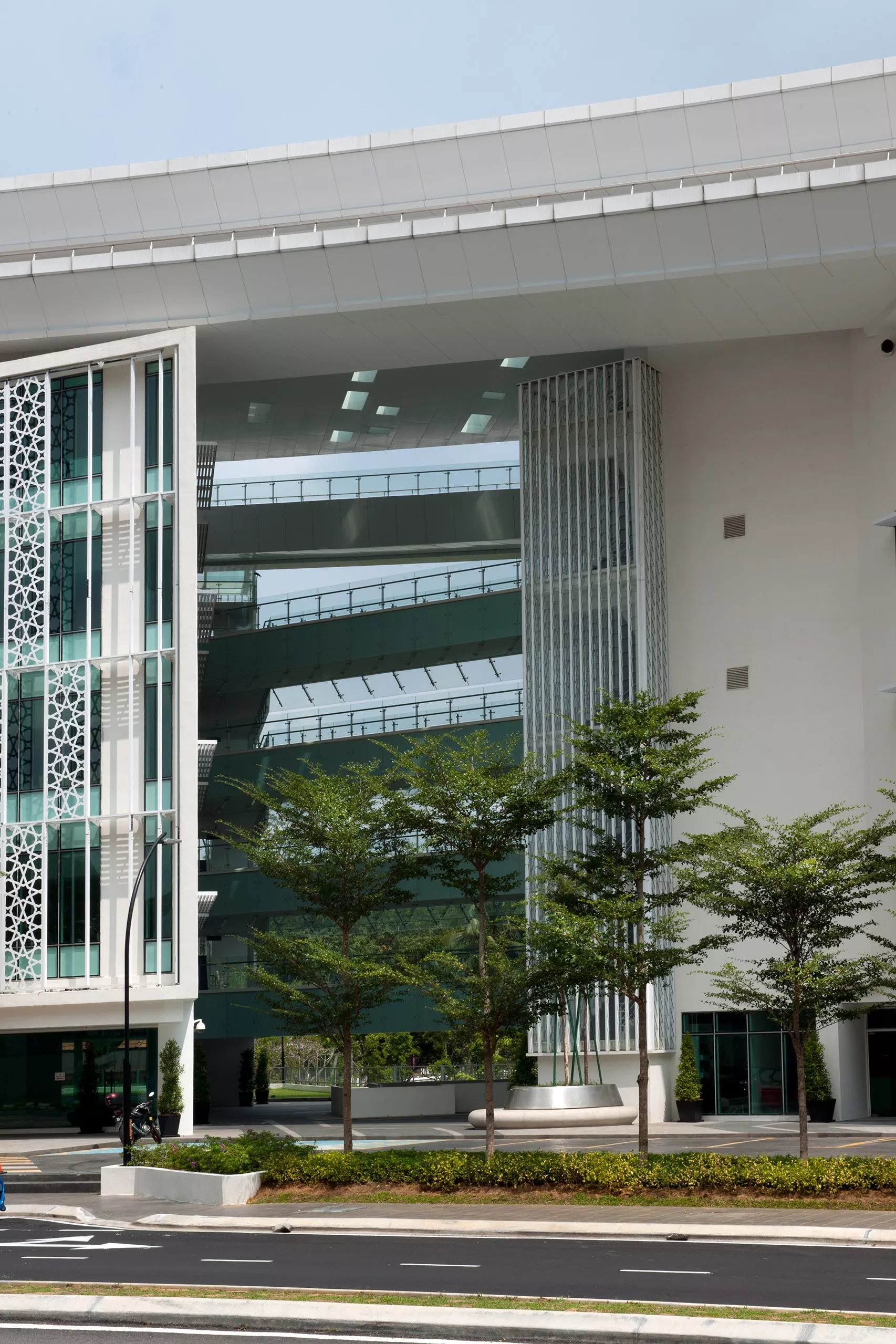

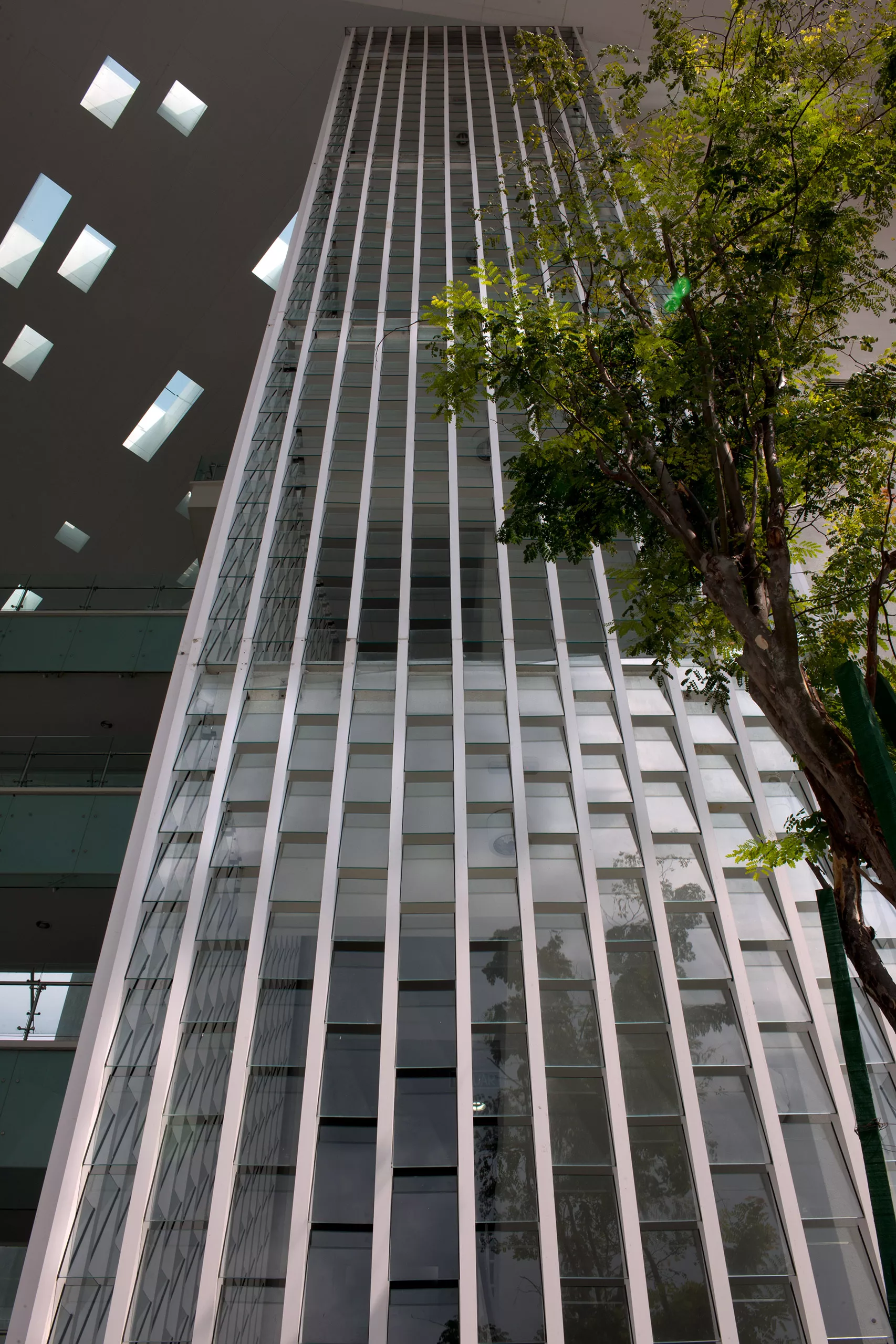

As one moves through the building, the experience is defined by openness, visual permeability and an ever-present connection to nature. Courtyards are carved between the blocks, bringing in ventilation and daylight deep into the interior via louvered skylights embedded in the roofscape. The courtyards act as breathing spaces that link work environments with the surrounding parkland, while shaded walkways, terraces and landscaped pockets encourage a calm, campus-like rhythm. By integrating workplace, landscape and public amenity, the headquarters becomes a hybrid civic environment—part office, part urban sanctuary.

The project’s environmental ambition is underpinned by a rigorous sustainability strategy. A significant portion of cooling demand is met through a solar-driven refrigeration system. Complemented by natural daylighting strategies, rainwater harvesting and wastewater recycling, the building operates at an energy intensity of 79 kWh/m²/year, achieving a 65% reduction compared to typical Malaysian commercial buildings.

These outcomes have earned the PKNS Headquarters LEED Platinum certification and two GBI Platinum ratings for its office and retail components, along with the ASEAN Energy Award in 2018 for the most environmentally sustainable large office building in the region.

Awards

2019
FIABCI World Prix d’Excellence Award
Winner – Office
2018
FIABCI Malaysia Property Award
Winner – Office
2018
ASEAN Energy Award
Winner – Green Large Building
2018
National Energy Green Technology Award
Winner – Energy Efficient Design
2017
Cityscape Global Award
Winner – Commercial Built
Winner – Sustainability
2017
Pertubuhan Akitek Malaysia (PAM) Award
Gold – Low-Rise Commercial
2017
Leadership in Energy and Environmental Design
LEED Platinum
2017
Green Building Index
GBI Platinum

Sustainable Design Data

BUILDING

60%

Percentage of site designated for landscape

19%

Percentage of landscape designated for tree conservation

11%

Percentage of site designated for lake

87.5%

Percentage of construction waste diverted from landfill

82.6%

Percentage of construction materials locally sourced

30.2%

Percentage of construction materials from recycled sources

Energy

128k Wh/m2/yr

Building Energy Intensity (BEI)

40W/m2

Percentage of landscape designated for tree conservation

1,500M Wh

Percentage of site designated for lake

>1,800K Wp

Energy output from solar panels

135.2W/m2

Cooling load of air-conditioned area

27%

Percentage of building energy from solar panels

>61%

Percentage of net floor Area (NFA) that uses daylighting

350

No. of mechanical & electrical digital power meters installed

17

No. of EV chargers provided on-site

Water

38.7%

Reduction of potable water consumption

16.1%

Percentage of greywater recycled

67%

Reduction of water usage from water efficient fittings

100%

Percentage of harvested rainwater used for irrigation
